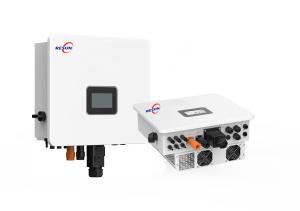

8KW single-phase hybrid inverter with intelligent safety load management

Product Categories
RESUN ENERGY CO,.LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

8KW single-phase hybrid inverter with intelligent safety load management

  • 1
  • 2
  • 3

Brand Name : RESUN

Model Number : R-8K-SL

Certification : ENIEC 61000-6-1:2019, EN IEC 61000-6-3:2021; EN 62109-1:2010; EN 62109-2:2011

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000

Delivery Time : 3-30days

Model : R-8K-SL

Power Rating : 8.0 KW

Max Efficiency : 98%

Operating Temperature Range : -25 to 60°C

Battery Compatibility : Lead-acid / Li-ion / User-defined

Rated Battery Voltage : 48V (minimum start-up voltage 44V)

Cooling Method : Natural convection

Input Voltage Range : 50/60Hz

PV INPUT DC voltage, current : 100~430Vdc，16A+16A

Communication Interfaces : RS485 / CAN / USB / Dry contact，Wi-Fi / GPRS

Certifications : ENIEC 61000-6-1:2019, EN IEC 61000-6-3:2021; EN 62109-1:2010; EN 62109-2:2011

Warranty : 5 years

Contact Now

8KW single-phase hybrid inverter with intelligent safety load management
• Multi protection design, safe storage of electrical energy, safeguarding household electricity usage. ​
• Support remote control, flexible switching between grid connected and off grid modes, stable power supply. ​
• Specially designed for families, compatible with common power sources and energy storage devices to meet daily electricity needs.


KEY STRENGTHS

• Support on/off-grid AC coupling function

• Support three-phase and multi-machine parallel connection

• Support intelligent load management (customized)

• Support BMS remote upgrade function (customized)


Description
Model R-8K-SL R-10K-SL
PV input data
Max. PV input power (kW) 12 15
Max. PV input voltage (V) 550
Start-up voltage (V) 100
MPPT voltage range (V) 100~430
Rated PV input voltage (V) 360
No. of MPPT trackers 2
No. of strings per MPPT tracker 1/2
Max. input current per MPPT (A) 16/16
Max. short-circuit current per MPPT (A) 24/24
Battery input data
Battery type Lithium-ion / Lead-acid
Max. charge / discharge power (kW) 8 10
Battery voltage range (V) 40~58
Rated battery voltage (V) 48
Max. charging / discharging current (A) 160/160 200/200
Rated charge / discharge current (A) 160/160 200/200
Battery charging strategy Self-adaption to BMS
BMS communication CAN
AC output data (grid side)
Rated output power (kW) 8 10
Max. apparent output power (kVA) 8.8 10
Max. apparent input power(kVA) 8.8 10
Rated grid voltage (V) 230
Grid voltage range (V) 176~270
Grid input voltage (V) 230
Rated grid frequency (Hz) 50/60
Grid frequency range(Hz) 47~61
Rated output current (A) 34.8 43.5
Max. AC output current (A) 38.3 43.5
Max. apparent input current (A) 38.3 43.5
Power factor >1 (0.8 leading ~ 0.8 lagging)
Max. grid passthrough current(A) 43.5
THDi <3%
Grid type L+N+PE
AC output data (back-up)
Rated output power (kW) 8 10
Max. apparent output power (kVA) 8.8 10
Rated output voltage (V) 230
Rated output frequency (Hz) 50/60
Rated output current (A) 34.8 43.5
Max. AC output current (A) 38.3 43.5
Peak output power ≥110%, 10mins; ≥120%, 1min; ≥130%, 1s; ≥150%, 100ms
Back-up switch time (ms) <20
THDu <3%
Protection
Supported protection PV reverse polarity protection, Anti-islanding protection, Ground fault protection,
Leakage current protection, Insulation resistance detection, Backup output short circuit protection,
AC under-voltage protection, AC output over-current protection, AC over-voltage protection
Surge protection DC Type III / AC Type III
Over voltage category DC Type III / AC Type III
Certifications and standards
Certificates ENIEC 61000-6-1:2019, EN IEC 61000-6-3:2021; EN 62109-1:2010; EN 62109-2:2011
General data
Ingress protection IP65
Operating temperature range (℃) -25~+60
Cooling Natural convection
Relative humidity 0-95% (non-condensing)
Operating altitude (m) 0~2,000(derating over 2,000)
Dimensions W*D*H (mm) 486×231×530
Weight (kg) 25.8
Topology (solar / battery) Transformerless / Transformerless
Noise emission (dB) <55
PV connection terminals MC4
Display and communication
Display LCD
Communication RS485/CAN
