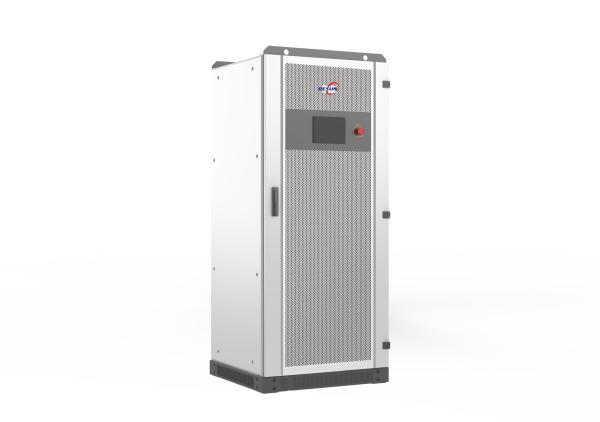

30KW Microgrid integrated photovoltaic multi machine parallel inverter

Name: 30KW Microgrid integrated photovoltaic multi machine parallel inverter
Brand: RESUN
Price: 1 USD

Best 30KW Microgrid integrated photovoltaic multi machine parallel inverter wholesale

Brand Name : RESUN

Model Number : RPS-30K-MG

Certification : EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-30days

Model : RPS-30K-MG

Power Rating : 30KW

Max Efficiency : 98%

Operating Temperature Range : -30 ~ 55℃

Battery Compatibility : Lead-acid / Li-ion / User-defined

Rated Battery Voltage : 250~850V

Cooling Method : Air Cooling

Input Voltage Range : 50/60Hz

PV INPUT DC voltage, current : 1000V,36-72A

Communication InterfaceInterface : RS485/Wifi/GPRS/CAN/DRM

Certifications : EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105

Warranty : 3 years

Contact Now

30KW Microgrid integrated photovoltaic multi machine parallel inverter

• Full module integrated design: integrating photovoltaic modules, MPPT modules, transformers, and STS, with built-in maintenance bypass, one-stop solution for microgrid power conversion needs, simplifying the system construction process.
• Flexible expansion and collaboration: supports parallel connection of multiple machines, and can flexibly expand capacity according to the scale of the microgrid; By intelligently regulating the load rate of DG, energy utilization efficiency and fuel economy can be improved.
• Efficient and stable operation: With flexible configuration control strategies, precise management of multi energy collaboration within microgrids; Ensure stable power supply for the system under complex working conditions and provide reliable power support for distributed energy scenarios.

KEY STRENGTHS

• Integrated PV/MPPT module/transformer/STS and maintenance bypass.

• Easy expansion, support PV ﬂexible conﬁguration.

• Support 100% unbalance.

• Support DG load rate control to improve fuel economy.

MPS PV and battery conﬁguration principles:

• Boost mode conﬁguration principle - open voltage at low temperature at the limit of PV installation * number of PV panels in series ≤ the lowest voltage of the battery;

• Buck mode conﬁguration principle - the maximum power operating voltage at the extreme high temperature of PV installation≥ the highest voltage of the battery;

• The PV and battery conﬁgurations of MPS must comply with the above conﬁguration principles.

Description

Model	RPS-30K-MG
AC(on-grid)
Max. output power (kW)	33
Rated output power (kW)	30
Rated voltage(V)	400
Voltage range (V)	320~460
Rated current (A)	43
Rated frequency (Hz)	50/60
Frequency range (Hz)	45~55/55~65
THDi	<3%
Power factor	1leading-1lagging(settable)
Grid type	3W+N+PE
AC(off-grid)
Max. output power (kW)	33
Rated power (kW)	30
Rated voltage (V)	400
Rated current (A)	43
THDu	≤1% linear; or≤5% nonlinear
Rated frequency (Hz)	50/60
Overload capacity	110% long-term, 120% 1min
PV input
Max. PV input voltage (V)	1,000
Max. PV power (kW)	36/72
MPPT module quantity	1/2
MPPT voltage range (V)	250~850
Battery
Battery voltage range (V)	250~850
Max. charging power (kW)	36/72
General data
Dimension WDH (mm)	8008001,900
Weight (kg)	620/650
Operation temperature (℃)	-30 ~ 55
Relative humidity	0 ~95% non-condensing
Ingress protection	IP20
Noise emission (dB)	<70
Operating altitude (m)	<5,000(>3,000 Derating)
Cooling	Air Cooling
Display and communication
Display	LCD touch-screen
BMS communication	RS485, CAN
EMS communication	RS485, TCP/IP
Certiﬁcates	EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105
